Shower Channel – Wall Mounted

All bathrooms are designed differently, and the Wall Mounted Shower Channel can be custom designed to suit the project at hand.

This channel is designed for either a three tiled wall design, two tiled wall/one glass wall, or one tiled wall and two glass walls. The integral flanges will always ensure the critical area of drainage is covered with the most trusted waterproofing material around – Stainless Steel.

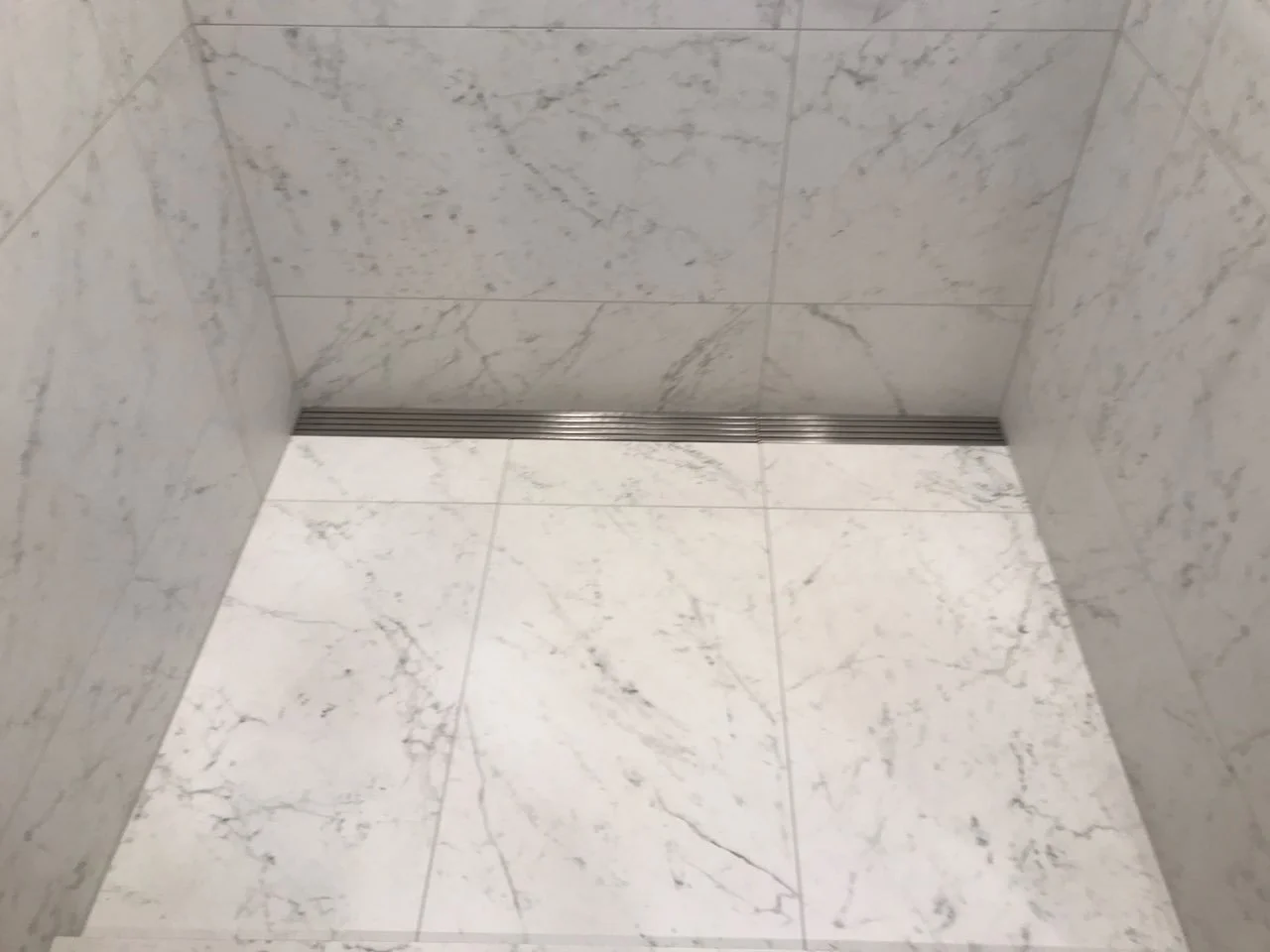

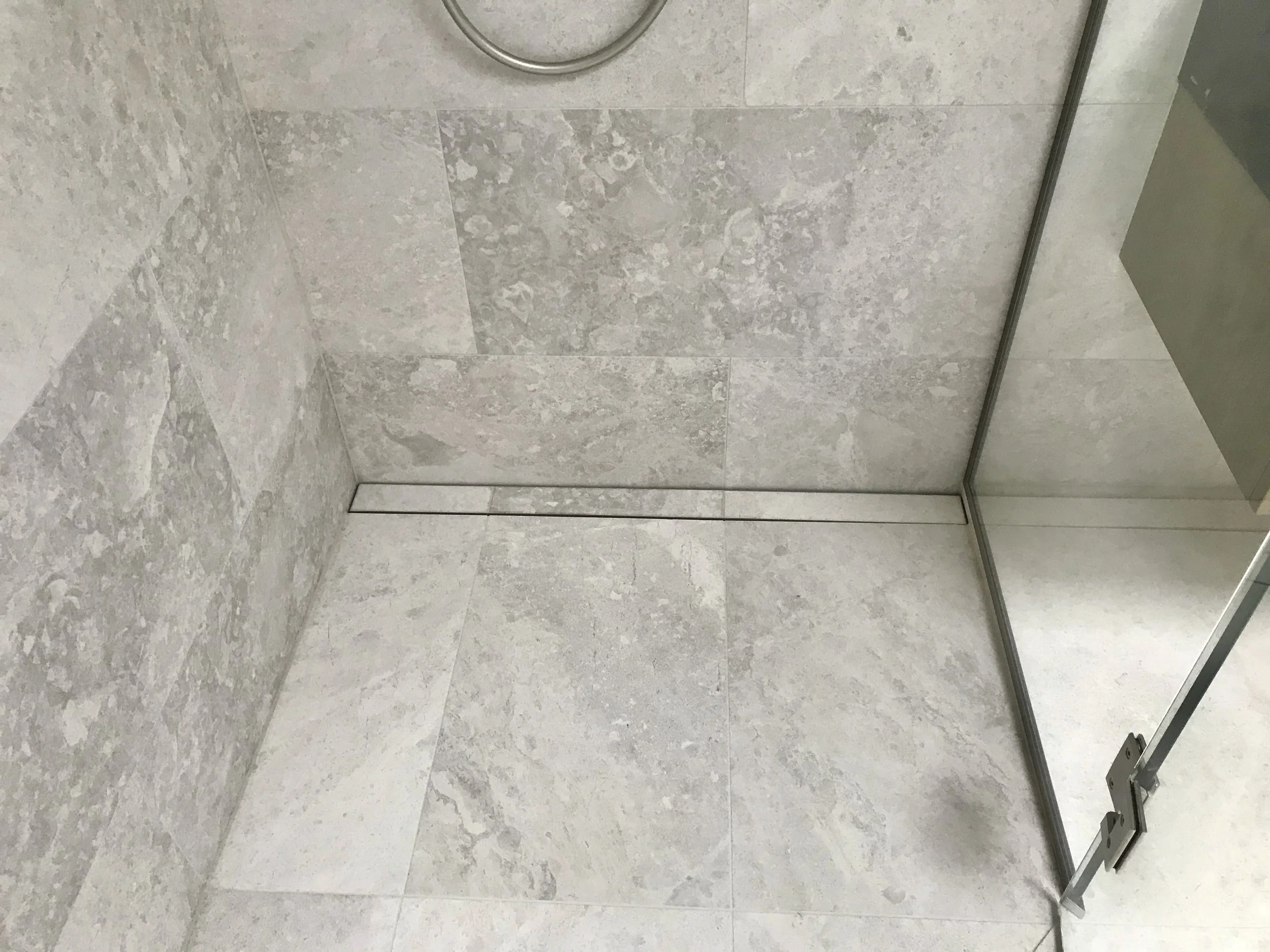

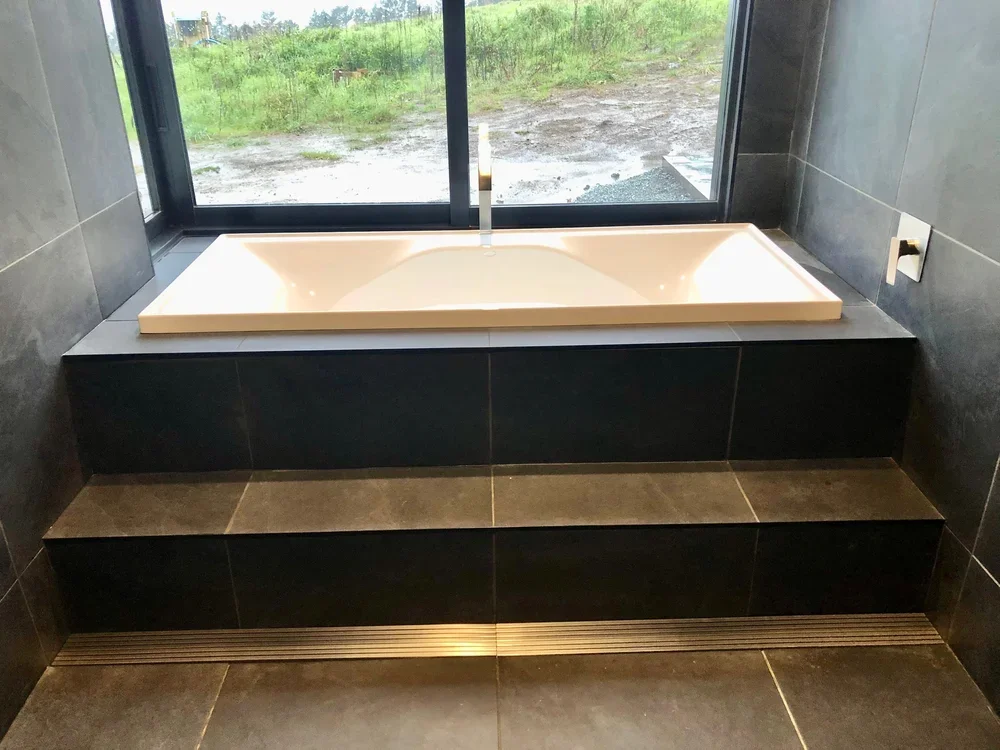

See photos for some finished projects.

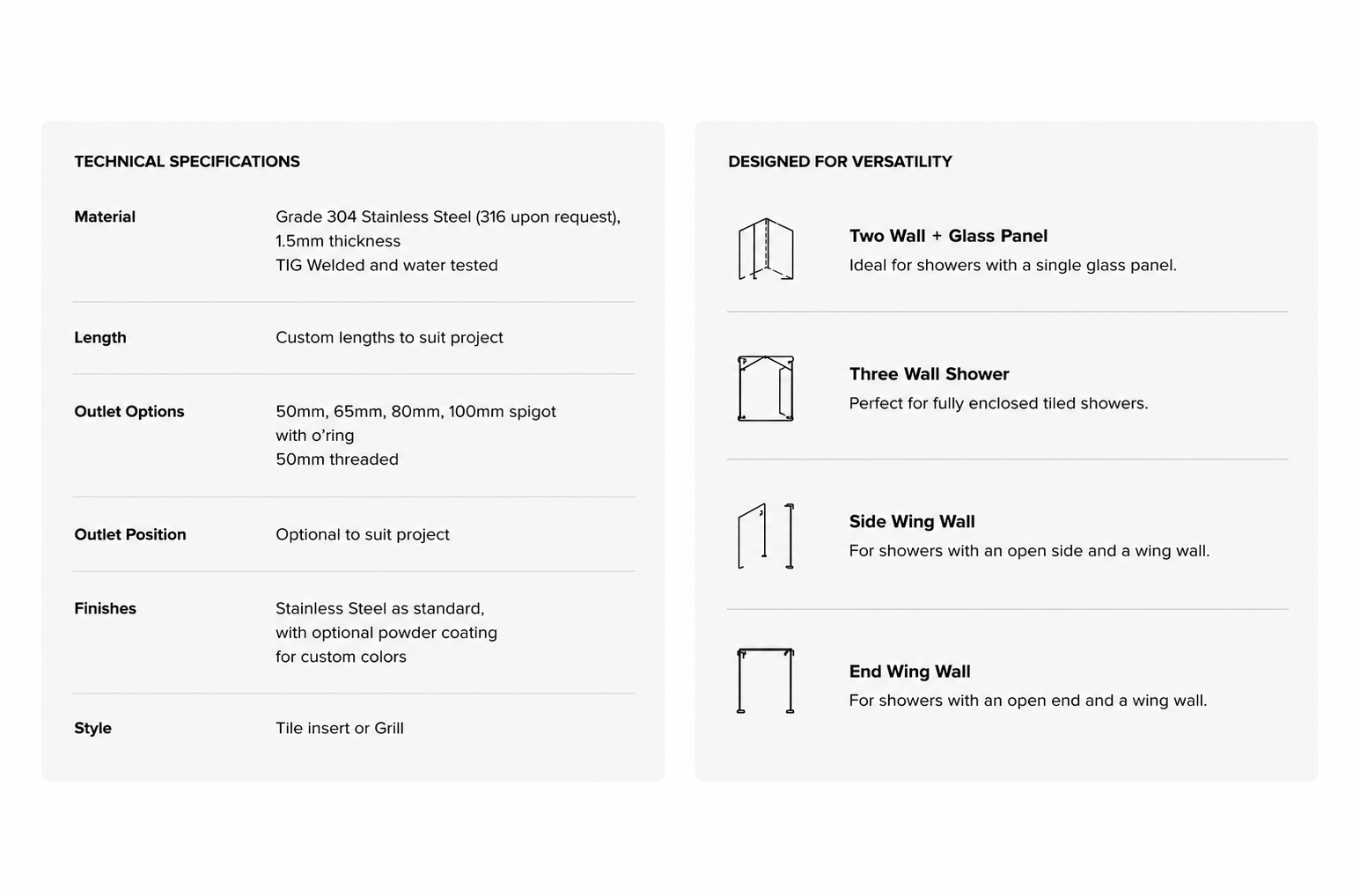

Material:

Grade 304 Stainless Steel (316 upon request), 1.5mm thickness
TIG Welded and water tested

Length:

Custom lengths to suit project

Outlet options:

50mm, 65mm, 80mm, 100mm spigot with o’ring
50mm threaded

Outlet position:

Optional to suit project

Finishes:

Stainless Steel as standard, with optional powder coating for custom colors

Style:

Tile insert or Grill
