Shower Channel – Level Threshold

JESANI

Suitable for tiled flooring

With the channel’s position at the threshold to the shower, the required 1:50 fall of the floor within the shower will commence from the opposite wall and fall back towards the channel. The benefits of utilising this design is the fall will commence above the substrate floor level.  This can prove to be an easier option during installation as no floor joists will be compromised.

For any design queries for level threshold entry channels, please call to discuss your specific project and requirements. All JESANI® channels are designed on a per project basis, so we are confident we can find a solution for you.

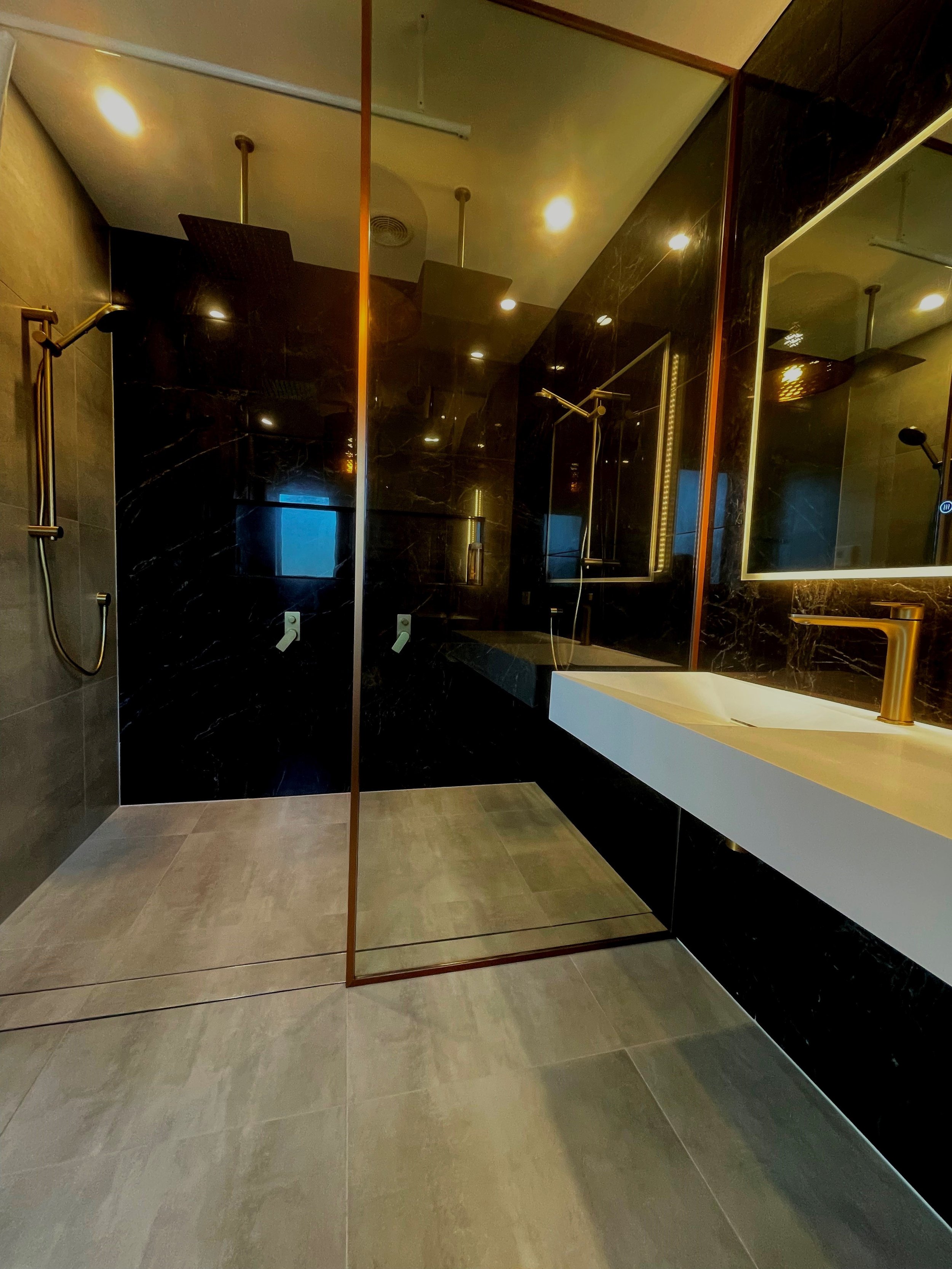

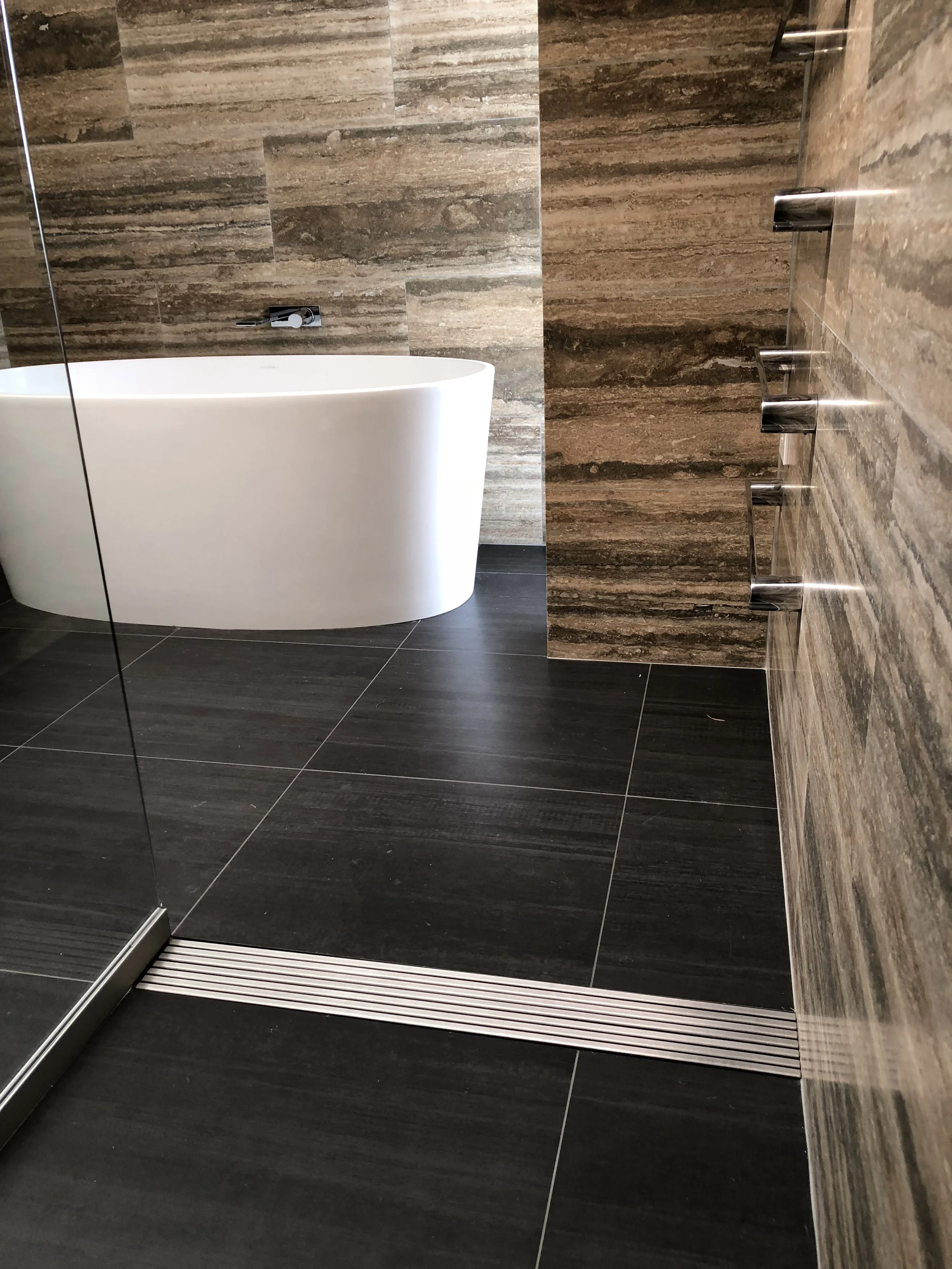

See photos for some finished projects.

TECHNICAL SPECIFICATIONS

Material

Grade 304 Stainless Steel (316 upon request)

Tig Welded and water tested

Thickness

1.5mm thickness

Length

Custom lengths to suit project

Outlet Options

50mm, 65mm, 80mm, 100mm spigot with o - ring 50mm threaded

Outlet Position

Optional to suit project

Finishes

Stainless Steel as standard, with optional powder coating for custom colours
